| WIFI | |
| Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| Débits WiFi | AX6600 5 GHz: 4804 Mbps (802.11ax, HE160) 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
| Couverture WiFi | 4 Bedroom Houses 8× Fixed High-Performance Antennas Beamforming High-Power FEM 4T4R |
| Capacité WiFi | Very High Tri-Band 4×4 MU-MIMO OFDMA Airtime Fairness DFS 8 Streams |
| Modes de Fonctionnement | Router Mode Access Point Mode |
| MATERIEL | |
| Processeur | 1.5 GHz Quad-Core CPU |

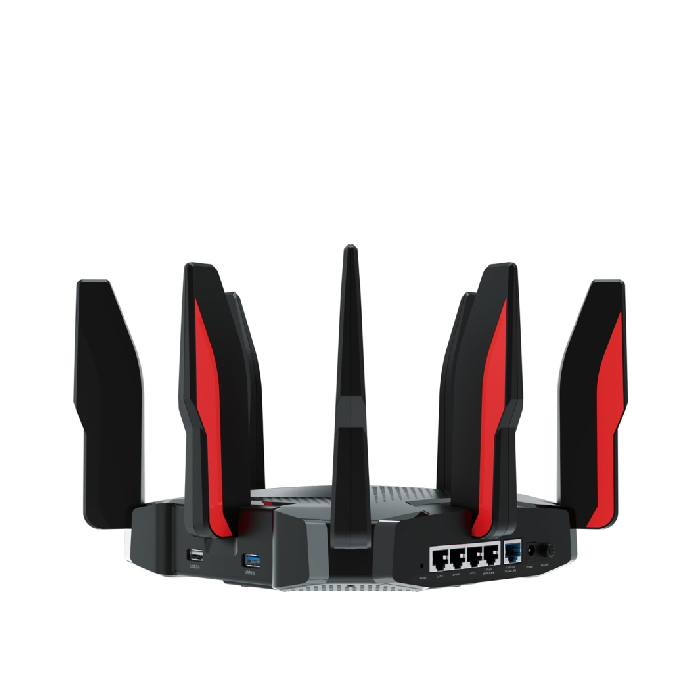

| Ports Ethernet | 1× 2.5 Gbps WAN/LAN Port 1× 1 Gbps WAN/LAN Port 3× 1 Gbps LAN Ports |
| Prise en charge USB | 1× USB 3.0 Port 1× USB 2.0 PortSupported Partition Formats: NTFS, exFAT, HFS+, FAT32Supported Functions: Apple Time Machine FTP Server Media Server Samba Server |
| Boutons | Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button |
| Puissance | 12 V ⎓ 3.3 A |
| SÉCURITÉ | |
| Chiffrement WiFi | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
| Sécurité Réseau | SPI Firewall Access Control IP & MAC Binding Application Layer GatewayHomeShield SecurityReal-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| Réseau Invité | 1× 5 GHz-1 Guest Network 1× 5 GHz-2 Guest Network 1× 2.4 GHz Guest Network |
| Serveur VPN | OpenVPN PPTP |
| LOGICIEL | |
| Protocoles | IPv4 IPv6 |
| Kit Services inclus | HomeShield |
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. |
| Contrôle Parental | HomeShield Parental Controls Custom Profiles |
| Types WAN | Dynamic IP Static IP PPPoE PPTP L2TP |
| Gestion des Priorités | QoS by Device |
| Service Cloud | Auto Firmware Upgrade TP-Link ID DDNS |
| Transfert NAT | Port Forwarding Port Triggering DMZ UPnP Virtual Server |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Administration | Tether App Webpage |
| AUTRES | |
| Systèmes Requis | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environnement | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| DONNEES DE TEST | |
| Puissance Transmission WiFi | CE: <20dBm{2.4GHz} <23dBm{5.15GHz~5.35GHz} <30dBm{5.47GHz~5.725GHz} FCC: <24dBm{5.47GHz~5.725GHz } <30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz } |
| Sensibilité Réception WiFi | 2.4GHz: 11n HT20 MCS0:-95dBm 11ax HE20 MCS11:-64dBm 11ax HE40 MCS11:-62dBm 5GHz-1: 11ac VHT20 MCS0:-92dBm 11ax HE20 MCS11:-61dBm 11ax HE40 MCS11:-58dBm 11ax HE80 MCS11:-55dBm 5GHz-2: 11ac VHT20 MCS0:-95dBm 11ax HE20 MCS11:-61dBm 11ax HE40 MCS11:-58dBm 11ax HE80 MCS11:-55dBm 11ax HE160 MCS11:-53dBm |
| PHYSIQUE | |
| Dimensions (L×P×H) | 12.2 × 8.1 × 6.8 in (311 × 207 × 174 mm) |
| Contenu de la boite | Wi-Fi Router Archer AX90 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
Produit certifié TP-LINK – Garantie 3 ans
